• M8 X 8 FLANGED SOCKET BUTTON (A2 STAINLESS STEEL) ISO 7380-2
1 1

Stainless Steel Bolts

M8 X 8mm FLANGED SOCKET BUTTON (A2 STAINLESS STEEL) ISO 7380-2 - Box of 500

M8 X 8mm FLANGED SOCKET BUTTON (A2 STAINLESS STEEL) ISO 7380-2 - Box of 500

These fasteners come in a set box quantity, the box quantity is shown below. Simply decide on the number of boxes you require and add to basket, or click buy it now. FREE DELIVERY on all order of £100 and over.

£147.54
£147.54
Sale Sold out
Shipping calculated at checkout.

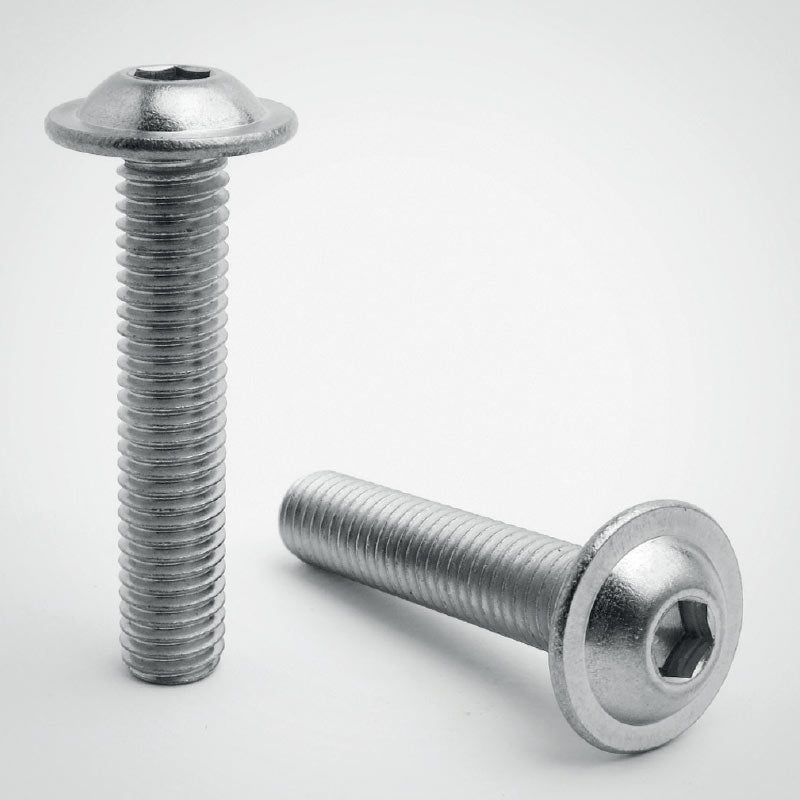

M8 X 8 mm Flange Socket button screws from Jacbolts. All our precision screws are made using high quality stainless steel. These metric Flange Socket Button Head Screws are manufactured to ISO 7380-2. Other socket buttons are available from Jacbolts in diameters (M sizes) ranging from M2 to M12. Lengths from 3mm up to 120mm. Free Tracked Delivery available*.

Want to download the Jacbolts Socket Button technical data sheet? Click here.

Diameter (d) Pitch dk (max) k (max) s (nom) t (min) c
M2 0.40 4.0 1.23 1.3 * *
M2.5 0.45 5.5 1.43 1.5 * *
M3 0.50 7.0 1.70 2.0 1.05 0.7
M4 0.70 9.4 2.20 2.5 1.3 0.8
M5 0.80 11.6 2.80 3.0 1.56 1.0
M6 1.00 13.6 3.30 4.0 2.08 1.1
M8 1.25 17.8 4.40 5.0 2.6 1.5
M10 1.50 22.0 5.50 6.0 3.12 1.7
M12 1.75 25 7.00 8.0 4.16 2.4

All sizes in millimeters

* Free Delivery when you spend £100 or more. Orders delivered to addresses in the Scottish highlands and outside of the UK mainland, delivery charges may apply.

View full details
