Stainless Steel Cap Bolts

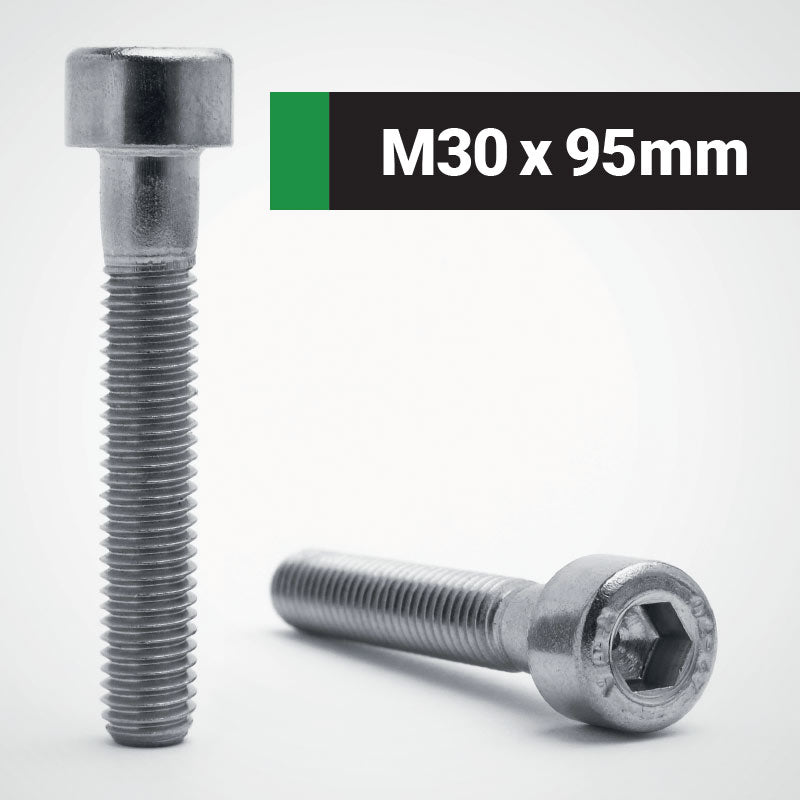

M30 X 95mm SOCKET CAP SCREW (A2 STAINLESS STEEL) DIN 912 / ISO 4762 - Box of 10

M30 X 95mm SOCKET CAP SCREW (A2 STAINLESS STEEL) DIN 912 / ISO 4762 - Box of 10

These fasteners come in a set box quantity, the box quantity is shown below. Simply decide on the number of boxes you require and add to basket, or click buy it now. FREE DELIVERY on all order of £100 and over.

£207.18
£207.18
Sale Sold out
Shipping calculated at checkout.

M30 x 95mm Socket cap screws with FREE UK Mainland Delivery* on all orders of £100 and over. All Jacbolts Precision screws are made from high quality stainless steel. These metric Socket Cap Screws are manufactured to DIN 912. Other cap bolt sizes are available from Jacbolts, in diameters (M sizes) ranging from M1.4 to M30. Lengths from 2mm up to 300mm.

The threaded part of the bolt is calculated at: (2 x bolt diameter in mm) + 12mm. Smaller lengths are fully threaded.

Want to download the Jacbolts Socket Cap Bolts technical data sheet? Click here.

Diameter (d) Pitch dk k s (nom) t (min)
M1.4 0.30 2.60-2.46 1.40-1.26 1.3 0.6
M1.6 0.35 3.00-2.86 1.60-1.46 1.5 0.7
M2 0.40 3.80-3.62 2.00-1.86 1.5 1.0
M2.5 0.45 4.50-4.32 2.50-2.36 2.0 1.1
M3 0.50 5.50-5.32 3.00-2.86 2.5 1.3
M3.5 0.60 6.00-5.82 3.50-3.36 2.5 1.6
M4 0.70 7.00-6.78 4.00-3.82 3.0 2.0
M5 0.80 8.50-8.28 5.00-4.82 4.0 2.5
M6 1.00 10.00-9.78 6.00-5.70 5.0 3.0
M8 1.25 13.00-12.73 8.00-7.64 6.0 4.0



M10 1.50 16.00-15.73 10.00-9.64 8.0 5.0
M12 1.75 18.00-17.73 12.00-11.57 10 6.0
M14 2.00 21.00-20.67 14.00-13.57 12 7.0
M16 2.00 24.00-23.67 16.00-15.57 14 8.0
M18 2.5 27.00-26.67 18.00-17.57 14 9.0
M20 2.50 30.00-29.67 20.00-19.48 17 10
M22 2.50 33.00-32.61 22.00-21.48 17 11
M24 3.00 36.00-35.61 24.00-23.48 19 12
M27 3.00 40.00-39.61 27.00-26.48 19 13.5
M30 3.50 45.00-44.61 30.00-29.48 22 15.5

All sizes in millimeters
