Stainless Steel Bolts

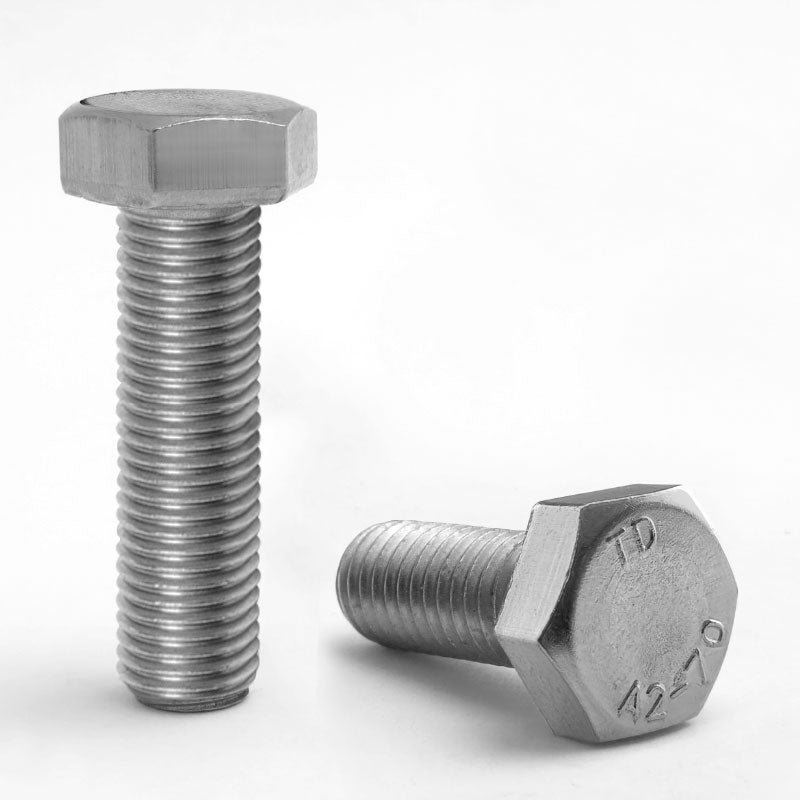

M12 x 20mm HEXAGON HEAD SET SCREW - FINE PITCH 1.50mm (A2-70 STAINLESS STEEL) DIN 961 - Box of 50
M12 x 20mm HEXAGON HEAD SET SCREW - FINE PITCH 1.50mm (A2-70 STAINLESS STEEL) DIN 961 - Box of 50
These fasteners come in a set box quantity, the box quantity is shown below. Simply decide on the number of boxes you require and add to basket, or click buy it now. FREE DELIVERY on all order of £100 and over.
Regular price
£143.92
Regular price
Sale price
£143.92
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
M12 x 20mm Fine Thread Pitch Hexagon Bolts are a variant of standard thread hexagon bolts, but have a finer thread pitch. The M8 fine thread pitch is 1.0mm, M10 fine thread pitch is 1.25mm, M12 fine thread pitch is 1.50mm and M16 fine thread pitch is also 1.50mm
The fine thread pitch is used for a greater thread engagement. Metric Fine Pitch Full Thread Hexagon Bolts, from Jacbolts, are manufactured to the specification DIN 961.
| Diameter (D) | Pitch | DK | K |
|---|---|---|---|
| M8 | 1.00mm | 13.00-12.57 | 5.5 |
| M10 | 1.25mm | 17.00-16.57 | 7 |
| M12 | 1.50mm | 19.00-18.48 | 8 |
| M16 | 1.50mm | 24.00-23.16 | 10 |
